What is a game engine?

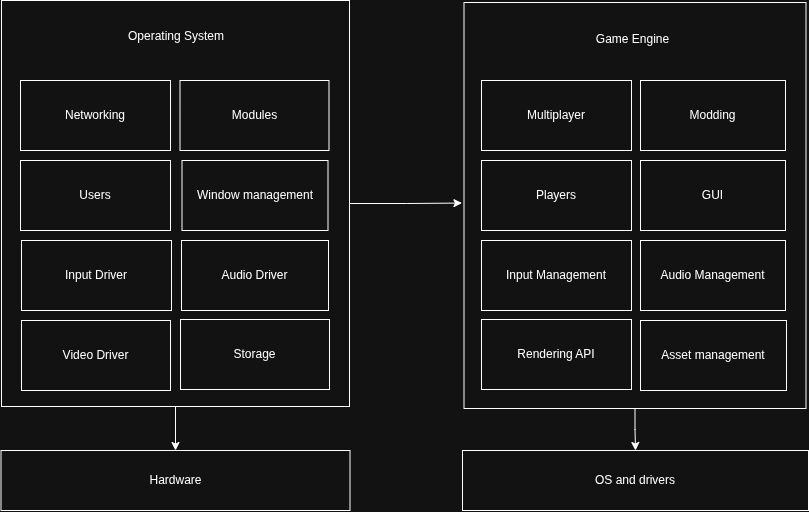

The line between a game / application and its engine is not something inherently fixed, people have different needs and they may think differently about it. This is what fundamentally drives the design of their engines. AAA studios may want a "big engine" that provides many advanced features out of the box, I would place Unreal Engine and Unity in this category. Some other smaller studios or individual recreational programmers may want a lighter platform that is easier to understand and to modify, think Raylib and Love2D.

Regardless, game engines are usually complex pieces of software. They provide a platform to define logic, render graphics, and access system resources like audio and input, as well as providing a cross-platform abstraction to the developer.

Brenta-Engine is more positioned towards the "big-engine" category, while my other game engine micro-engine.h falls on the other side.

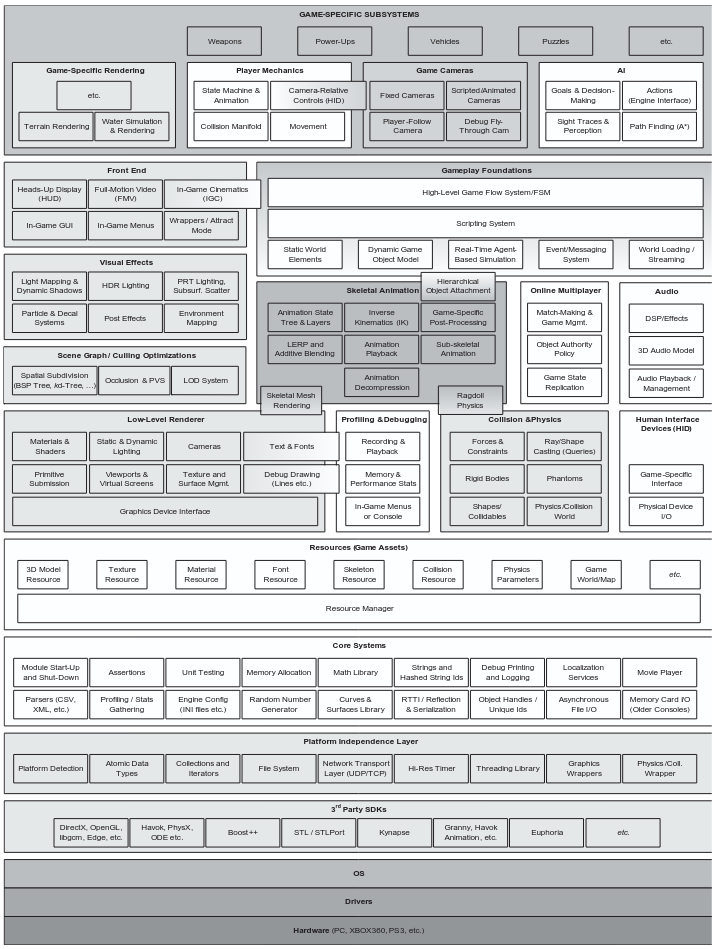

Example "big" architecture:

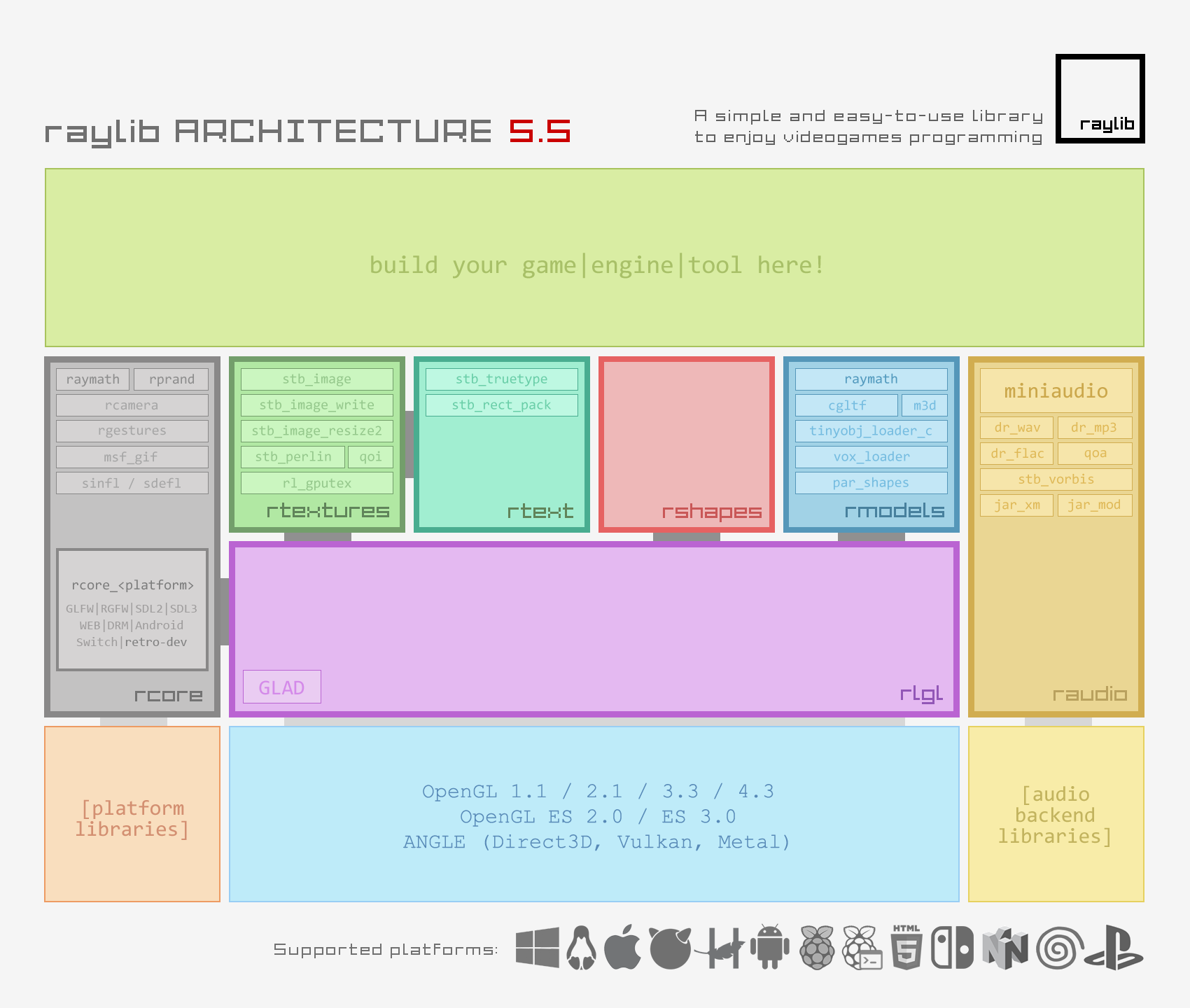

Example "small" architecture:

Design process

Brenta's development has been more iterative than meticulously designed. I rewrote huge parts of the engine many many times, to the point where I am not scared to do big refactoring anymore - that is just routine - and I know I am deemed to repeat this process again. But through these many refactoring, the API reached a point where all objects work well together and you can reason about them through what I call the "architecture" or "design" of the engine. This is what I aim to describe in this documents.

I wanted to write my own graphics engine primarily because I was curious to understand how these big systems are designed and implemented, and as a programming exercise / learning experience. The more I learned about graphics the more I became fascinated and interested in the topic.

When I began this project in July 2024 I was really confused with using OpenGL and C++, it took me a while to develop a decent mental model. I was at my second year of university and I did not have any major programming experience, but I pushed through it and hacked some things. I became obsessed with the project for the entire summer, which led to the release of Brenta v1.0.0. I did not fully understand what I was doing and its design is more of a hack (and the code clearly shows it). I moved on to other projects afterwards.

I picked up the project in December 2025, I was a more experienced developer and I took up the challenge again. Here I fully rewrote every part of the engine, introducing most of the core abstractions that the engine uses. I found out that writing a game engine has a lot of overlap with writing an operating system (which is another area I am really interested in). You are working with audio, files, video, network and the GPU. A game engine is essentially a realtime system since you need to compute logic and render the frame in under 16ms to run at 60 FPS, hence you have to understand how the CPU and memory works in order to optimize it.

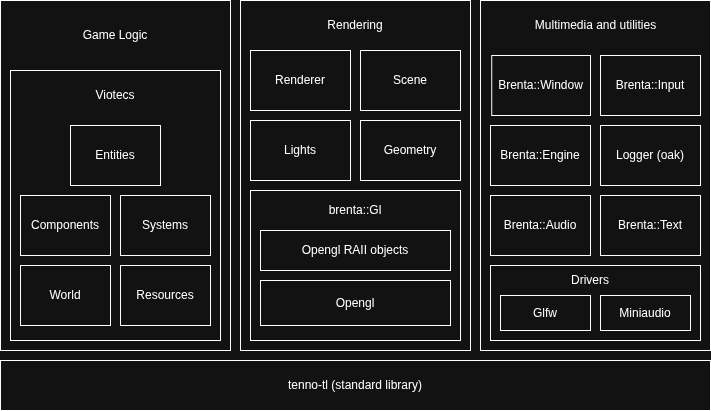

Here is an high level overview of the major classes that are used in the engine:

Subsystems

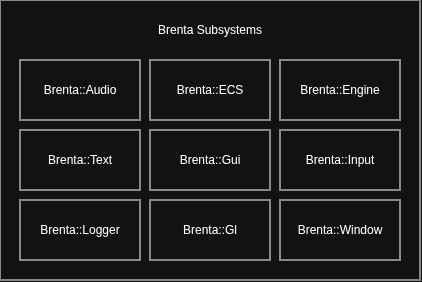

One of the first architectural decision I made was the introduction of the Sybsystem. Brenta engine is divided in subsystems, each one has different responsibilities and provides certain abstractions. The most important subsystems are the Rendering, which manages things like the scene and render commands, and the Entity Component System (ECS) which manages game logic.

Renderer

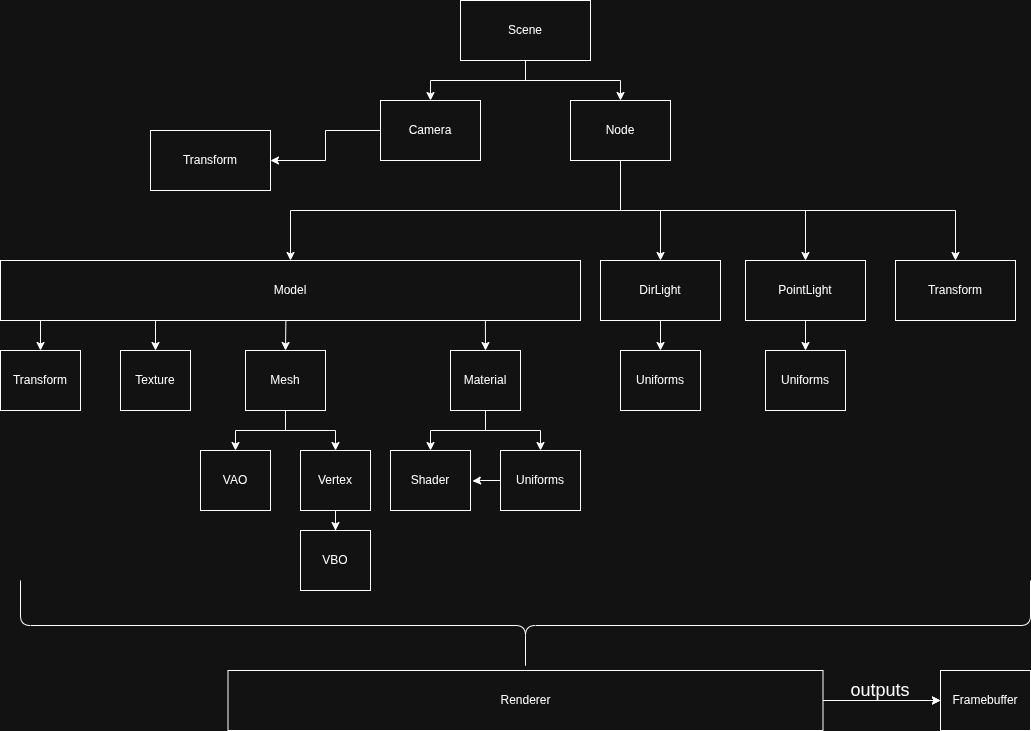

The renderer provides a set of abstraction for working with geometry and lights in order to render a frame on the screen (or to a framebuffer). The engine has a static renderer class Renderer, you can submit all rendering information through rendering commands including models, lights and the camera. When you are done registering all the data, the renderer draws them to the currently active framebuffer using some rendering alogorithm / technique with eventual optimizations.

The actual rendering algorithm deserves its own book. There are many rendering techniques available, briefly the most popular ones are the following:

• rasterization: this is the most popular technique for real time rendering since we have hardware that can do it fast, and it is the default technique in the engine. Its primitive is the triangle, which is composed of three vertices in 3D space. A vertex may also store a color or a position in a texture (often called uv coordinates). Given a triangle, after projecting it to the screen, the renderer (whether software or hardware accelerated) will interpolate over discrete pixels inside the triangle and color them based on a coloring algorithm or program (fragment shader). This "projection" is achieved by multiplying together three matrices: the model or world matrix which translates a vertex to its position in world space, the view matrix which shift and rotates the world based on the camera position (If the camera moves 5 feet to the right, it’s mathematically the same as moving the entire world 5 feet to the left), and projection matrix which applies perspective and field-of-view; this ultimately maps the vertices inside a cube called the Canonical Cube where the GPU can work with.
• ray tracing: the general idea is to shoot a ray (which is just a line) for each pixel (sometimes more than one ray per pixel) which interact with the scene and computes the color of the pixel. We simulate lights and reflections by scattering a ray when it collides with object based on the object's material. This achieves very good looking images but it is costly since you may want to simulate every ray bouncing over many surfaces. We also need to have a way to check if a ray collided with an object, which is "trivial" only for simple shapes but gets easily more complex (requiring Bounding Volume Hierarchy or KD-Trees). There are several techniques to calculate the color, including:
  • path tracing: instead of just "bouncing" a ray, it uses Monte Carlo integration to randomly sample many paths for light.
  • ray marching: we step through the ray line by some amount, checking for intersections with the scene.
    • Voxel based: we step through a grid which divides space in discrete squares or cubes. This creates a "blocky" look.
    • Sphere tracing: we calculate the step size by measuring the distance between the current ray position and the closest object.
  • raycasting: this is the famous technique used by Wolfestein 3D, where we iterate over the X axis of the framebuffer and shoot a ray in a 2D space. The illusion of 3D is achieved by drawing vertical lines based on the distance of the camera and the object that has been hit.
• point cloud: here we want to render a set of points. We may want to do this when we have a dataset of points, for example while doing photogrammetry where we want to reconstruct 3D objects from images. Or we may want to convert these points to a mesh. We could use both ray tracing or rasterization for rendering.
  • gaussian / triangle splatting: instead of using points as primitives, we use 3D gaussians or triangles. We learn the properties of the primitive (color, dimensions...) via a neural network. We can then rasterize it to the screen.

Another huge topic is lighting. Brenta implements the Phong reflection model but provides the abstractions necessary to integrate other methods.

Scene

There are many ways to define a scene. Brenta supports both the node-graph architecture, commonly used in Godot, Unity and Unreal, and the ECS (Entity Component System) architecture like in Bevy.

Node graph

The scene is a tree of nodes where each node has a transform, and may have a model, a directional light, any number of point lights and other nodes (children). All transforms are relative to the transform of their parent; when a node is updated, all its children are updated too.

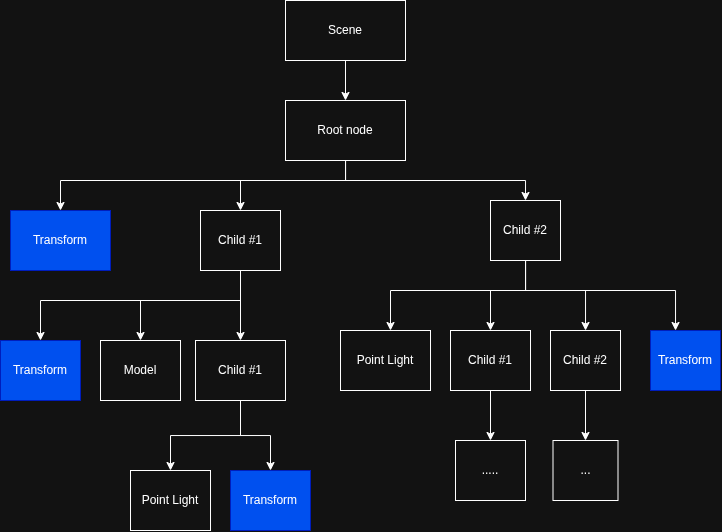

Here is an high-level picture that shows the main classes used in the scene graph, where arrows going down mean the parent contains one or more children:

Ecs

The Entity Component System architecture is used to manage all logic of a videogame. Check out viotecs for more information.
